I need the name of this part on my Cutlass!!! PLEASE HELP!

Thread Tools

Search this Thread

  #1
Old 10-14-2020, 07:06 PM
Gino's Avatar
Junior Member
Thread Starter
Join Date: Oct 2020
Location: Georgia
Posts: 1
Default I need the name of this part on my Cutlass!!! PLEASE HELP!

I am replacing the carburetor on my 1985 Oldsmobile Cutlass Supreme 3.8 V6. When I removed it there was a piece laying under it that I also need to replace but do not know The name of the piece! Can anyone help? Piece is second and third photo. Thanks!!!

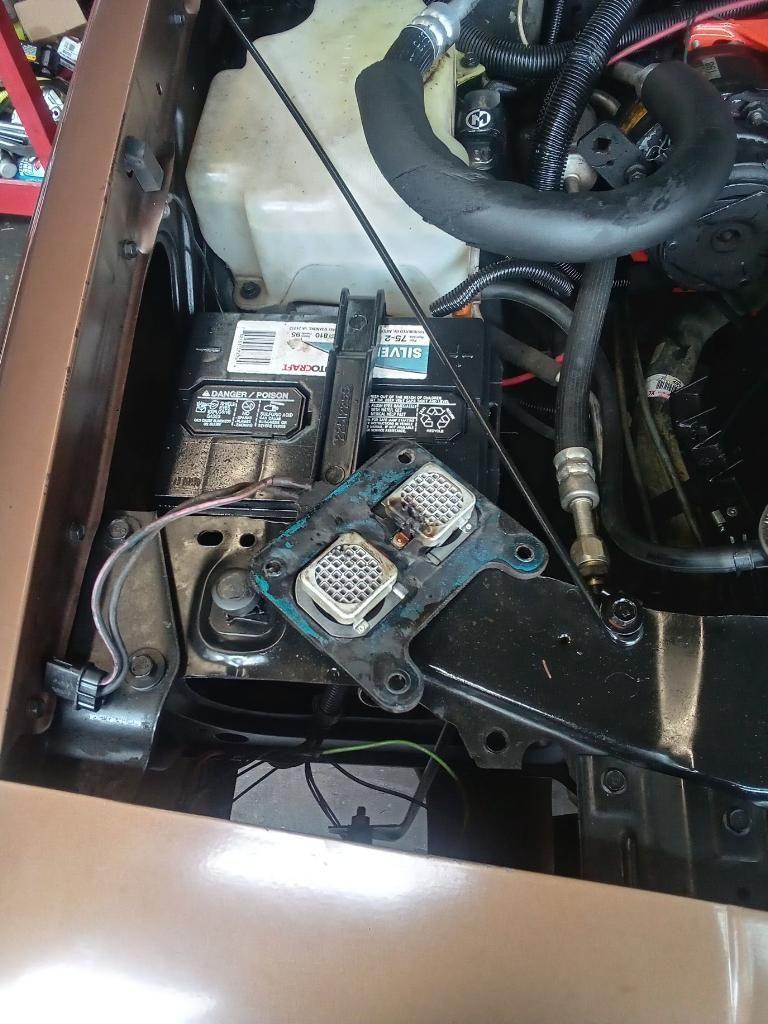

The piece lays underneath the carb

I need the name of this piece!

Other side of the piece

  #2
Old 10-15-2020, 08:50 PM
Philip Woodward's Avatar
Junior Member
Join Date: Oct 2020
Posts: 2
Default

Its an EFE grid. Early Fuel Evaporation Its a heater that helps fuel evaporation when cold.

Phil Woodward

  #3
Old 09-16-2021, 02:36 AM
ssg26k's Avatar
Junior Member
Join Date: Sep 2021
Posts: 2
Default

Your EFE grid melts because the EFE relay contacts get stuck and over heat the grid. When I worked in a dealership we always replaced the relay and grid together. Relay is on cowl behind right side shock tower just below electronic spark control module.

  #4
Old 10-08-2021, 09:36 PM
Robert G. Stevens's Avatar
Junior Member
Join Date: Oct 2021
Location: Marion Ohio
Posts: 14
Default

Originally Posted by Gino
I am replacing the carburetor on my 1985 Oldsmobile Cutlass Supreme 3.8 V6. When I removed it there was a piece laying under it that I also need to replace but do not know The name of the piece! Can anyone help? Piece is second and third photo. Thanks!!!
The piece lays underneath the carb

I need the name of this piece!

Other side of the piece
The GM Parts (Buick) Catalog calls this part "HEATER, carb to manifold (1985-86) Gp. 3.726, Pt. 25526373". This is for a 231 powered Regal but it should be the same.
